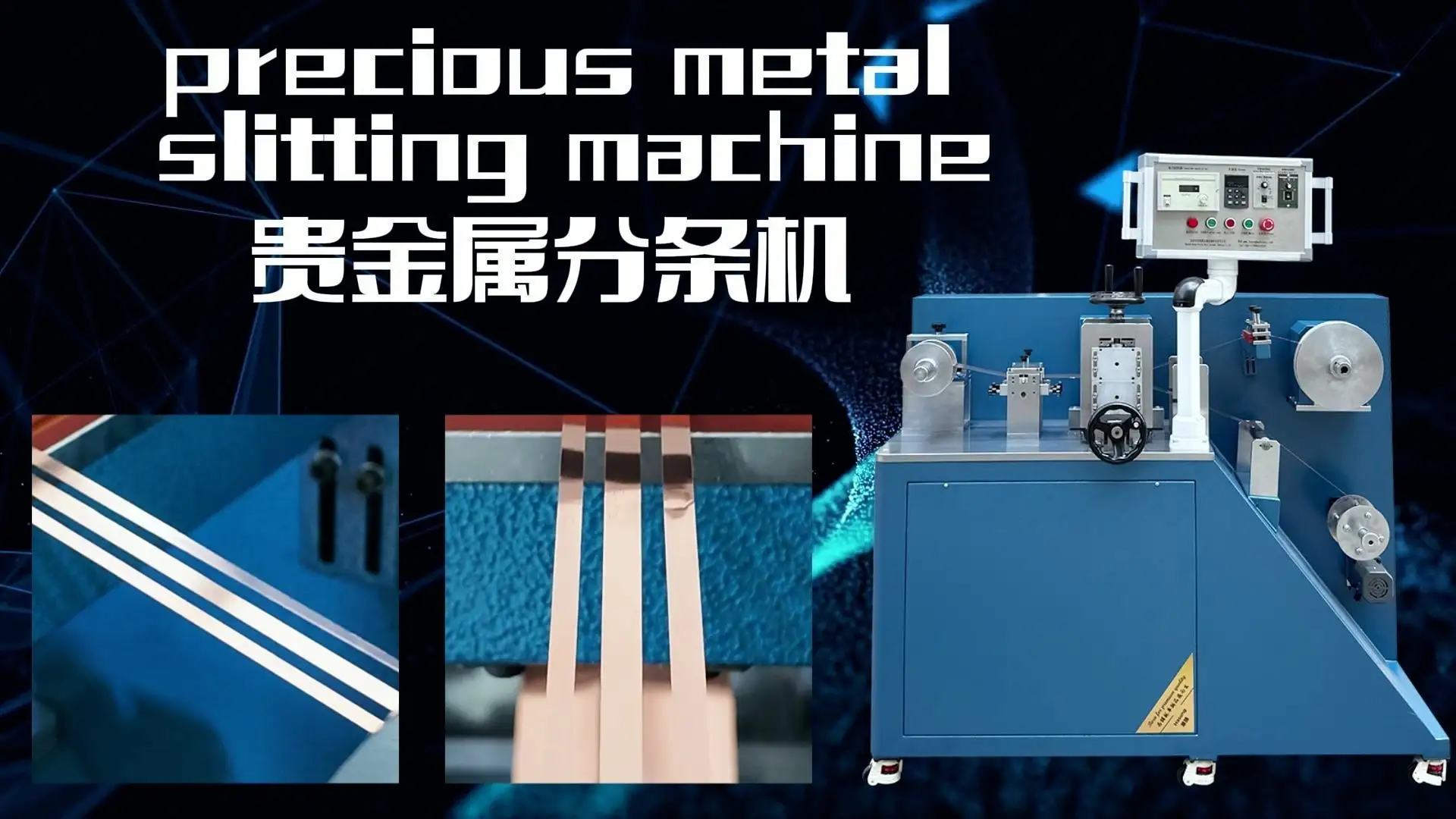

Hasung-Cutting Machine With Hheet Winding Device
Hasung's automatic slitting and winding machine is specifically designed for precision longitudinal cutting of precious metal thin strips, capable of slitting metal strips ranging from 6 to 100mm. It delivers smooth, burr-free cuts without the need for secondary grinding, and features automatic synchronous winding of both finished products and scrap materials, ensuring high efficiency and ease of operation.
Model：HS-1149C
Product Description
Hasung Precision Metal Strip Slitting and Cutting Equipment Achieves stable thin strip cutting with high-precision blade sets, effectively avoiding issues such as material stretching and edge misalignment. Independent tension closed-loop control ensures smooth feeding, accommodating various precious metal coils including gold, silver, and copper, with flexible adjustable processing width ranges. The machine integrates dual winding mechanisms, separating finished products from waste materials to minimize material loss. The human-machine control panel is simple and user-friendly, allowing production rates to be adjusted as needed. With stable and long-lasting operation, it is ideal for batch production of jewelry raw materials and precision electronic metal strips.
Product Data Sheet
| Product Specifications | |
| Model | HS-1149C |
| Voltage | 380V |
| Power | 4KW |
| Motor speed | 1400 revolutions per minute |
| Cutting thickness | 0.01-1.0mm |
| Work efficiency | 320mm/min |
| Cutting sheet width | 6-100mm |
| Maximum sheet size | 120mm |
| Machining width | 4-250mm |
| Size | 1500×800×1650mm |
| Weight | About480kg |
| With sheet winding device | |
Product advantages
