Best Value Jewelry Vacuum Casting Machine for Metalworking
Product details of the jewelry vacuum casting machine
Product Overview
Our professionals procure high-grade raw material for the production of Hasung jewelry vacuum casting machine from reliable vendors of the industry. Customers can count on Hasung for product performance. Apart from the competitive price, Hasung also can supply the highest quality of jewelry vacuum casting machine.
Product Information
With a focus on details, Hasung strives to create high-quality jewelry vacuum casting machine.
Shenzhen Hasung Precious Metals Equipment Co., Ltd is a preferred manufacturer in the Metal Casting Machinery industry. Innovation is at the core of the value that we deliver to our customers. We can manufacture this product to your exact specifications. Shenzhen Hasung Precious Metals Equipment Co., Ltd are determined that we will invest more in the improvement of R&D strength and gather more talents in the industry, both of which can make great contributions to the long-term development of our company.
Max. withstand 4 bars pressure which gurantees perfect casting. Vacuum sealing with SBS system, without using gaskets.
Technical Data:
| Model No. | HS-TVC1 | HS-TVC2 | HS-TVC4 | HS-TVC8 |
| Voltage | 220V/380V, 50/60Hz | 220V/380V, 50/60Hz | 380V, 50/60Hz, 3 Phases | |
| Power | 8KW | 10KW | 15KW | 20KW |
| Capacity (Au) | 1kg | 2kg | 4kg | 8kg |
| Max Temp | 1550°C | |||
| Melting speed | 6-8 min. / 2-3 min. | 12 - 15 min. / 3-5 min. | 3-5 min. | 5-8 min. |
| Casting pressure | 0.1-0.3Mpa | |||
| Max. cylinder size | 4"x10" | 4"x10" / 5"x10" | 5"x12" | 8.6"x13" |
| Application metals | Gold, Karat gold, silver, copper, alloys | |||
| Operation mode | Automatic / Manual | |||
| Inert gas | Nitrogen / argon | |||
| Memory | Optional | |||
| Cylinder auto lifting | Yes | |||
| Cooling chamber | Melting chamber and casting chamber are cooled while working for safety purpose. | |||
| Operation method | One-key operation to complete the entire process, POKA YOKE foolproof system | |||
| Control system | Taiwan / Siemens PLC touch panel system | |||
| Cooling method | Water chiller or Running water | |||
| Vacuum pump | High quality vacuum pump included (63M3/h) | |||
| Dimensions | 880x680x1230mm | |||
| Weight | approx. 250kg | |||
Descriptions:

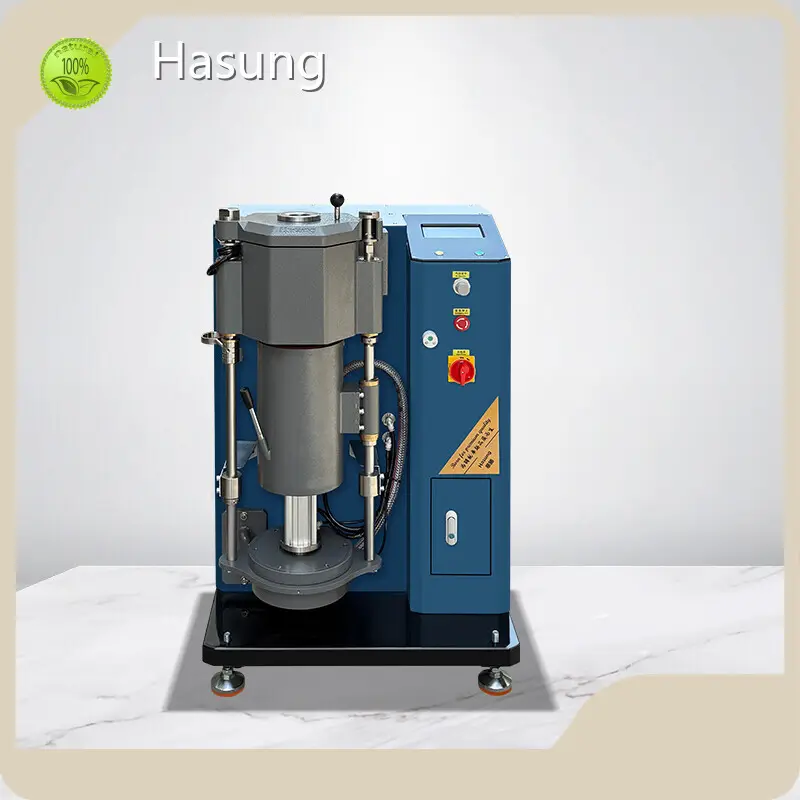

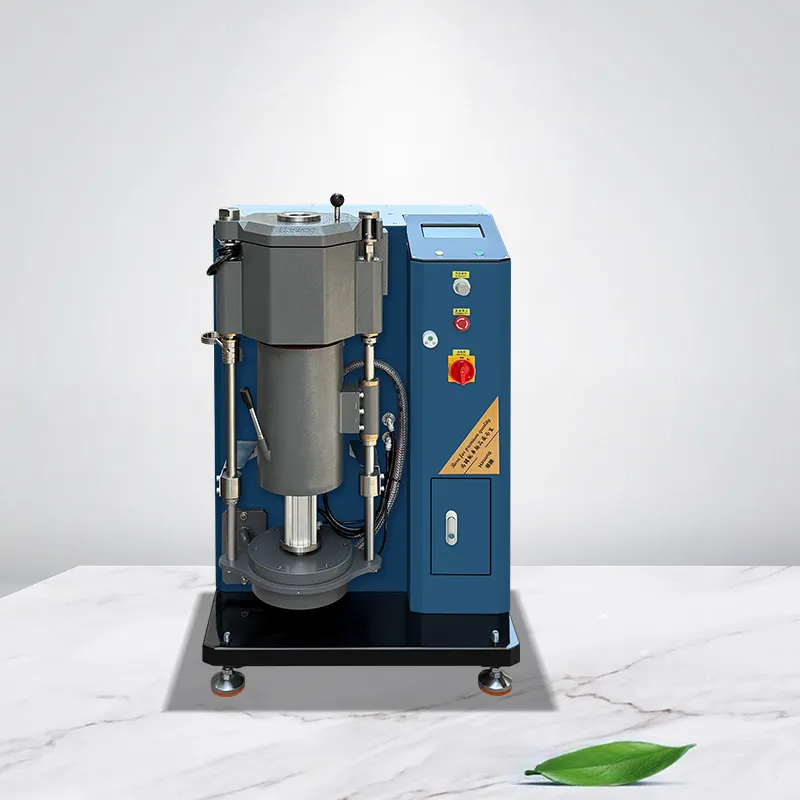

TVC Induction vacuum pressure casting machine for gold silver copper alloys casting
TVC series casting machine is the most innovative in the latest generation of pressure vacuum casting machine in the world market. They use low-frequency generators, and the power control is proportional and is managed entirely by a computer. The operator simply puts the metal into the crucible, places the cylinder and presses the button! The "TVC" series model comes with a 7-inch color touch screen. Throughout the merger process, the operation is gradual.
Automatic process:
When press button of “Auto”, vacuum, inert gas, heating, strong magnetic mixing, vacuum, casting, , vacuum with pressure, cooling, all processes done by one key mode.
Regardless of the type and quantity of gold, silver, and alloy, the frequency and power are modulated. Once the molten metal reaches the casting temperature, the computer system adjusts the heating and emits a low-frequency pulses to sense the stirring alloy. When all set parameters are reached and the temperature stabilizes at the maximum deviation at ± 4°C, the casting starts automatically, followed by a strong pressurization of the metal with an inert gas.
TVC series casting machine is one of the most innovative in the latest generation of pressure vacuum casting machine in the world market.
They use low-frequency generators, and the power control is proportional and is managed entirely by a computer.
The operator simply puts the metal into the crucible, places the cylinder and presses the button! The
"TVC" series model comes with a 7-inch color touch screen.
Throughout the merger process, the operation is gradual.
Regardless of the type and quantity of gold, silver, and alloy, the frequency and power are modulated.
Once the molten metal reaches the casting temperature, the computer system adjusts the heating and emits a low-frequency pulses to sense the stirring alloy.
When all set parameters are reached and the temperature stabilizes at the maximum deviation at ± 4°C, the casting starts automatically, followed by a strong pressurization of the metal wit
Hasung Precious Metals Equipment advantages
1. The product has uniform color and no segregation:
Vibration improves material flow, and the material structure is more compact. Improve shape filling and reduce the risk of hot cracks
3. The grain size is reduced to 50%:
Solidify with a finer and more uniform structure
4. Better and more stable material properties:
The tensile strength and elasticity are increased by 25%, and the subsequent processing performance is improved.
Q: Are you manufacturer?
A: Yes, we are the original manufacturer of the highest quality products for precious metals smelting and
casting equipment, especially for high tech vacuum and high vacuum casting machines. Welcome to visit our factory.
Q: How long does your machine warranty last?
A: Two years warranty.
Q: How is your machine quality?
A: Definitely it's the highest quality in China in this industry. All machines apply the best world famous brands name parts. With great workmanship and reliable highest level quality.
Q: Where are your factory located?
A: We are located in Shenzhen, China.
Q: What can we do if we have problems with your machine while using?
A: First, our induction heating machines and casting machines are with highest quality in this industry in China, customers
usually could use it for more than 6 years without any problems if it's under normal condition using and maintenance. If you have any troubles, we'll need you to provide us a video to describe what the problem is so that our engineer will judge and find out the solution for you. Within warranty period, we'll send you the parts free of charge for replacement. After warranty time, we'll provide you the parts at an affordable costs. Long lifetime technical support is offered freely.
Company Introduction
Shenzhen Hasung Precious Metals Equipment Technology Co., Ltd, a modern company, has been focusing on the business of Precious Metals Melting Equipment,Precious metals casting machine,gold bar vacuum casting machine,gold silver granulating machine,precious metals continuous casting machine,gold silver wire drawing machine,vacuum induction melting furnace,precious since its inception. Adhering to the core value, Hasung is courageous to challenge and make self-breakthrough. We also think highly of sincerity-based management and win-win cooperation. Competing in a decent way to make benefits is what we always believe in. We aim to meet customers' needs and market demand and strive to become a leading company in the industry. Our company has a strong overall talent resources including a large number of employees, many experienced technical personnel, and high-quality management personnel. Hasung can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.
We have strong strength and rich experience. And we are looking forward to discussing business cooperation with partners from all walks of life!
Hasung is a technological leader in the area of metal melting machine and metal casting equipment for the precious metals and new materials industry.
