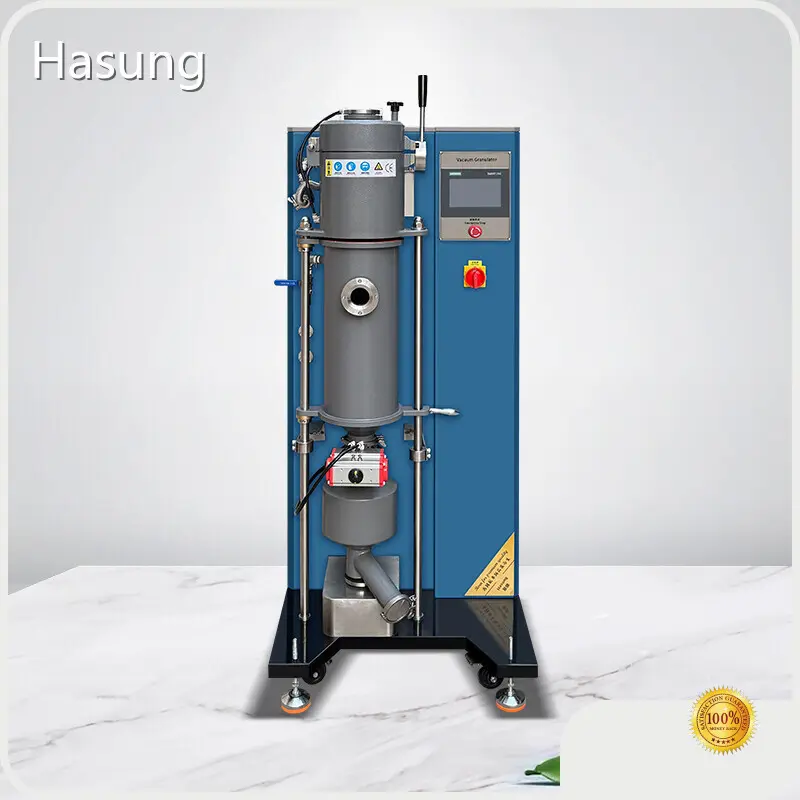

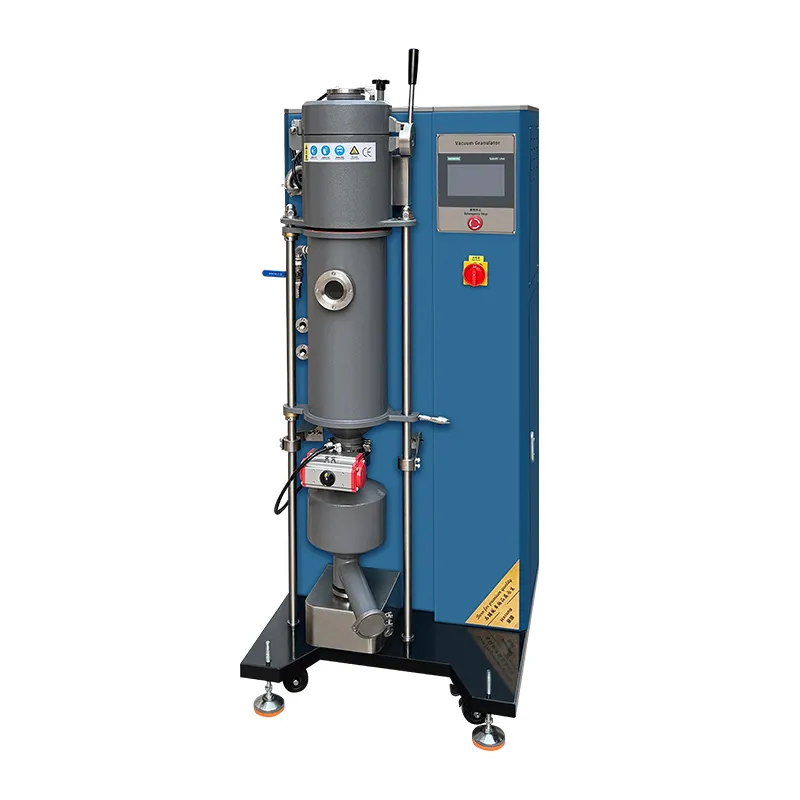

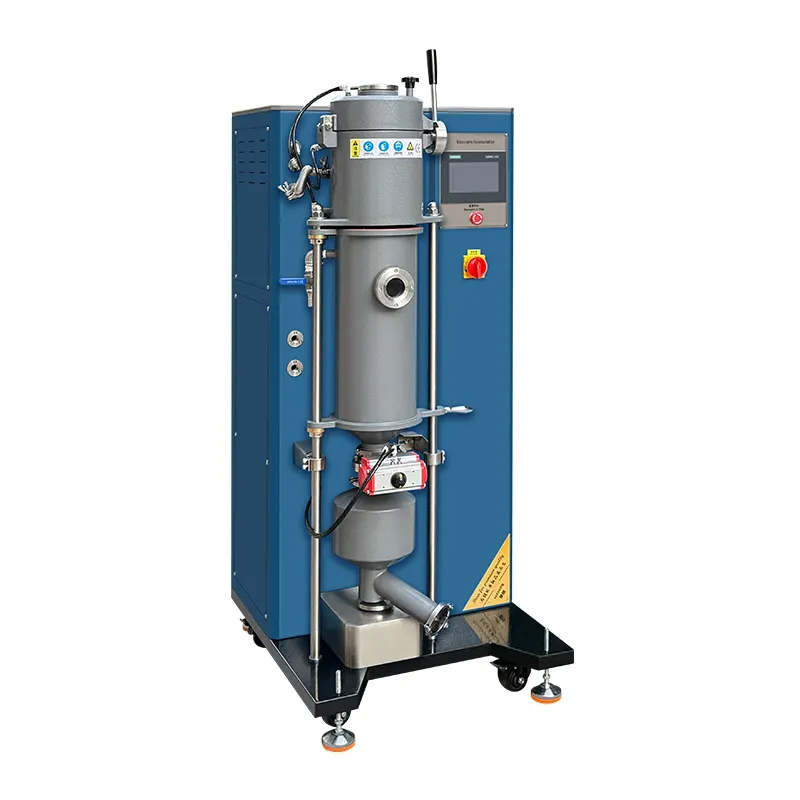

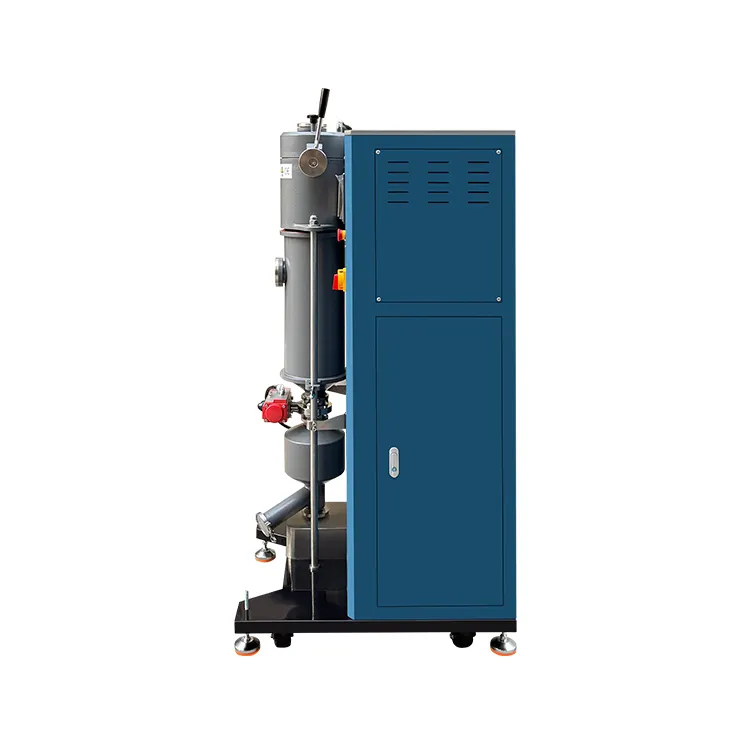

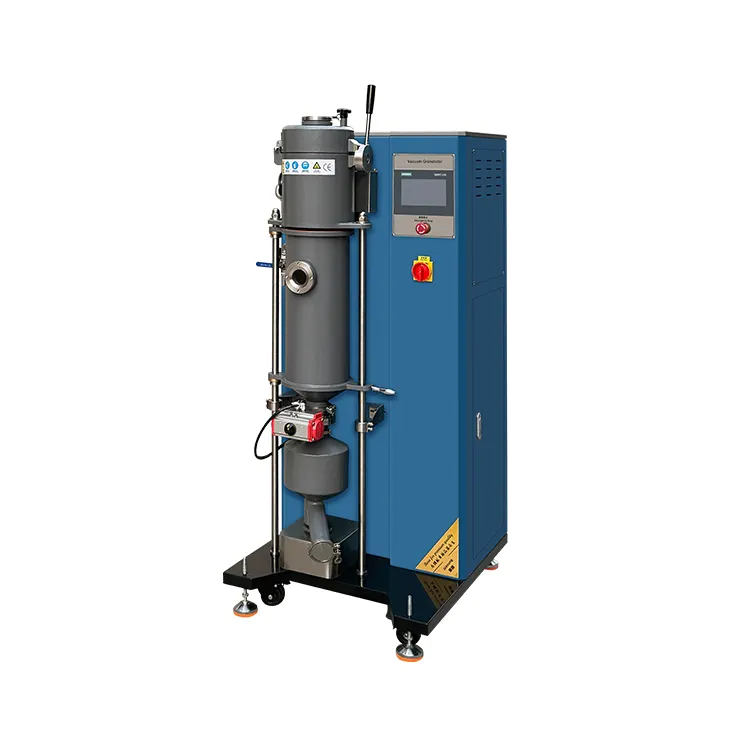

For Solder Alloy Granulation Metal Granulating Equipment by Hasung
Product details of the metal granulating equipment
Product Description
Hasung metal granulating equipment has a user-friendly design that can give intuitive user experience. It gives trouble free performance to the user as they are stringently tested on different quality parameters. The product has gained much acceptance and popularity in the field.
Product Description
Gold Silver Granulating Process:
Technical Specification:
|
Model No.
|
HS-GR4
|
HS-GR5
|
HS-GR6
|
HS-GR8
|
|
Voltage
|
220V, 50/60Hz / 380V, 50/60Hz
|
380V, 50/60Hz
|
380V, 50/60Hz
|
380V, 50/60Hz
|
|
Power Supply
|
0-15KW
|
0-15KW
|
0-15KW
|
0-15KW
|
|
Max Temp
|
1500°C
|
|||
|
Casting Time
|
1-2 min.
|
3-5 min.
|
2-5 min.
|
3-6 min.
|
|
Shielding Gas
|
Argon / Nitrogen
|
|||
|
Temp Accuracy
|
±1°C
|
|||
|
Capacity
|
4kg (Gold)
|
5kg (Gold)
|
6kg (Gold)
|
8kg (Gold)
|
|
Application
|
Gold, K gold, silver, copper and other alloys
|
|||
|
Vacuum
|
High level vacuum pump
|
|||
|
Operation method
|
One-key operation to complete the entire process, POKA YOKE foolproof system
|
|||
|
Control system
|
Taiwan Weinview/Siemens PLC+Human-machine interface intelligent control system (optional)
|
|||
|
Cooling type
|
Water chiller(sold separately) or Running water
|
|||
|
Dimensions
|
880x680x1580mm
|
880x680x1580mm
|
880x680x1580mm
|
880x680x1580mm
|
|
Weight
|
approx. 180kg
|
approx. 180kg
|
approx. 200kg
|
approx. 250kg
|
FAQ
Q: Are you manufacturer?
A: Yes, we are the original manufacturer of the highest quality products for precious metals smelting and casting equipment, especially for high tech vacuum and high vacuum casting machines. Welcome to visit our factory in Shenzhen, China.
Q: How long does your machine warranty last?
A: Two years warranty.
Q: How is your machine quality?
A: Definitely it's the highest quality in China in this industry. All machines apply the best world famous brands name parts. With great workmanship and reliable highest level quality.
Q: Where are your factory located?
A: We are located in Shenzhen, China.
Q: What can we do if we have problems with your machine while using?
A: First, our induction heating machines and casting machines are with highest quality in this industry in China, customers usually could use it for more than 6 years without any problems if it's under normal condition using and maintenance. If you have any troubles, we'll need you to provide us a video to describe what the problem is so that our engineer will judge and find out the solution for you. Within warranty period, we'll send you the parts free of charge for replacement. After warranty time, we'll provide you the parts at an affordable costs. Long lifetime technical support is offered freely.
