Product details of the gold casting equipment
Quick Overview
From material selecting to material processing, Shenzhen Hasung Precious Metals Equipment Technology Co., Ltd finish independently. gold casting equipment has excellent performance, stable and reliable quality. The gold casting equipment produced by Hasung is very popular in the market and is widely used in industry. Shenzhen Hasung Precious Metals Equipment Technology Co., Ltd has gained core competitive advantages in gold casting equipment field with its quality products.
Product Introduction
Compared with the gold casting equipment of our peers, the gold casting equipment we produce is provided with the following advantages.
Vacuum Continuous Casting Machines / High Vacuum Continuous Casting Machines
HVCC Vacuum Continous Casting machines have been design with the most up-to-date technologies to give you semi-finished products with the best quality such as high quality high density gold, silver, copper, alloys, etc.
With only one machine, you will be able to obtain the semi-finished product you desire, such as:

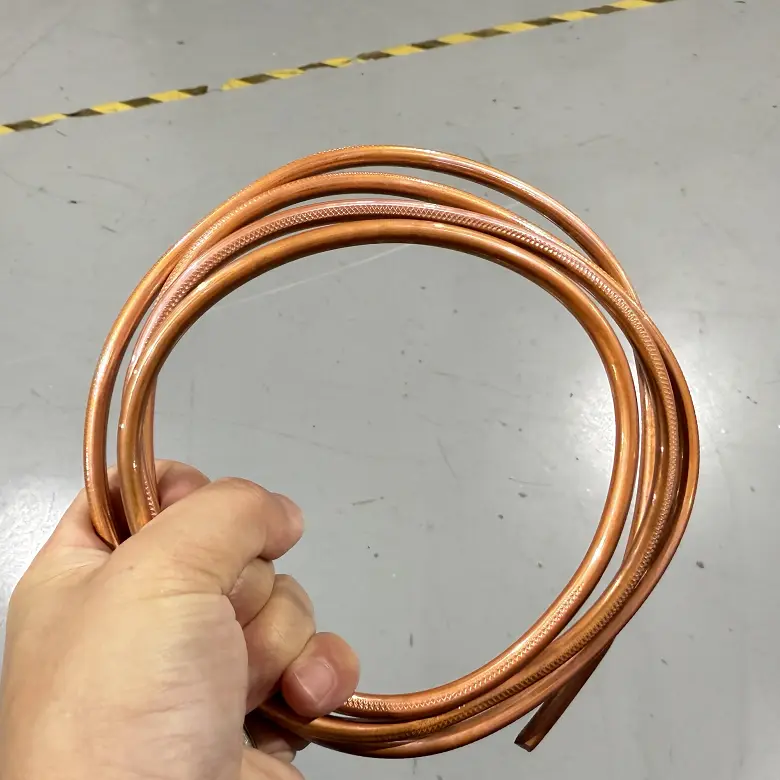

Wires, from 4 to 16 mm Ø,
Sheets,
Tubes,
HVCC machines are equipped with Gas Wash Purge procedure which removes oxygen with the vacuum pump and fills back the melting chamber with inert gas, preventing the oxidation of the alloy in a very fast and efficient way.
Medium frequency induction heating stirs the melted alloy and leads to a perfect homogeneity, while the temperature is constantly monitored by a number of independent temperature controls.
| Model No. | HS-HVCC5 | HS-HVCC10 | HS-HVCC20 | HS-HVCC30 | HS-HVCC50 | HS-HVCC100 |
| Voltage | 380V 50Hz, 3 phase | |||||
| Power | 15KW | 15KW | 30KW | 30KW | 30KW | 50KW |
| Capacity (Au) | 5kg | 10kg | 20kg | 30kg | 50kg | 100kg |
| Maximum temperature | 1600°C | |||||
| Casting rod size range | 4mm-16mm | |||||
| Casting speed | 200mm - 400mm / min. (can be set) | |||||
| Temperature accuracy | ±1℃ | |||||
| Vacuum | 10x10-1Pa; 10x10-2Pa; 5x10-1Pa; 5x10-3Pa; 6.7x10-3Pa (optional) | |||||
| Application metals | Gold, silver, copper, Brass, Bronze, alloys | |||||
| Inert gas | Argon/ Nitrogen | |||||
| Controller system | Taiwan / Siemens PLC touch panel controller | |||||
| Cooling method | Running water / water chiller | |||||
| Wire collecting unit | optional | |||||
| Dimensions | 1600x1280x1780mm | 1620x1280x1980mm | ||||
| Weight | approx. 480kg | approx. 580kg | ||||

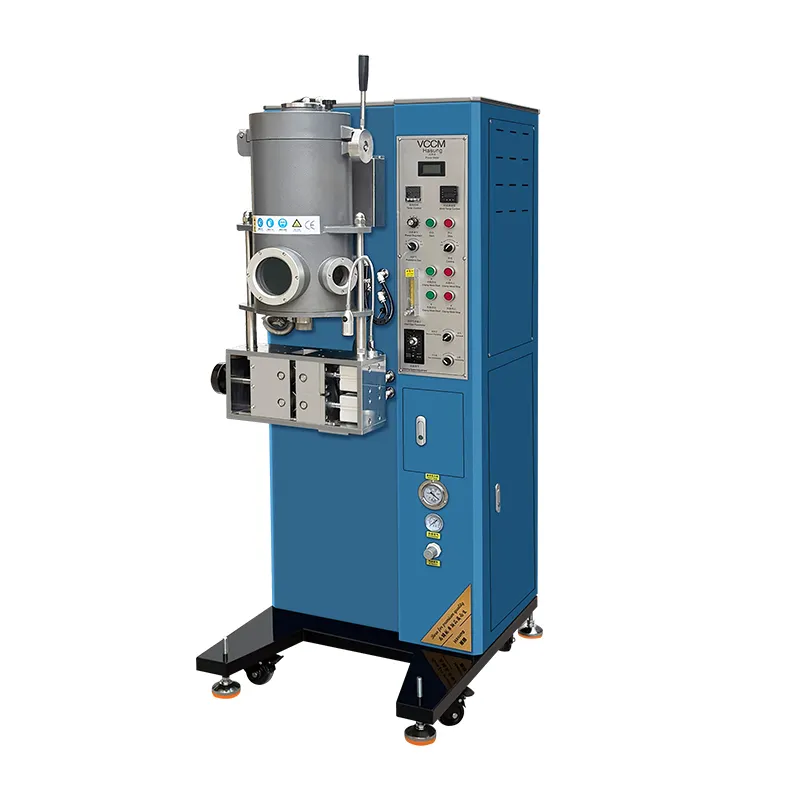

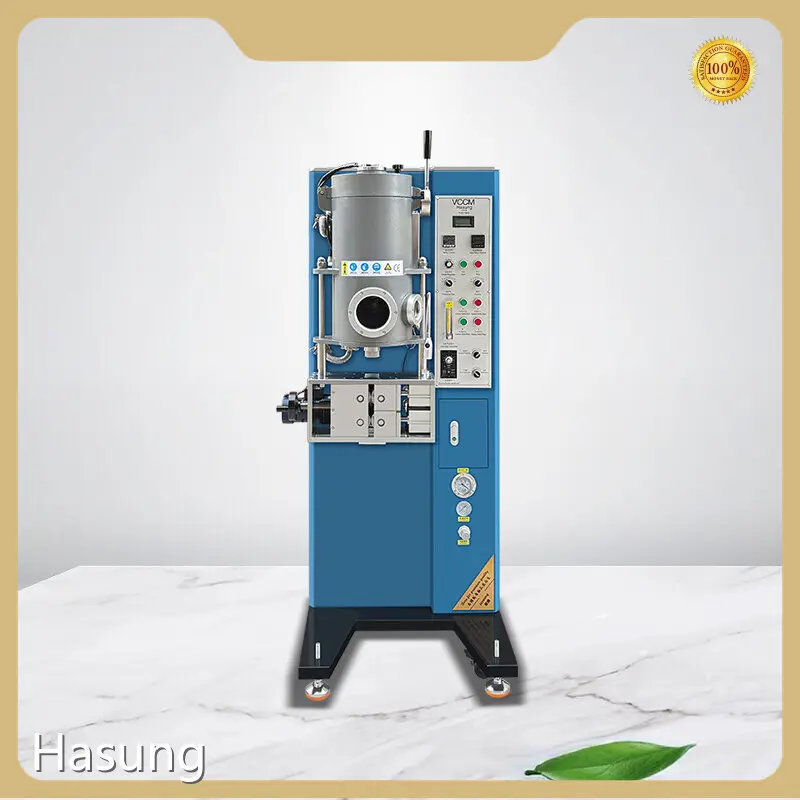

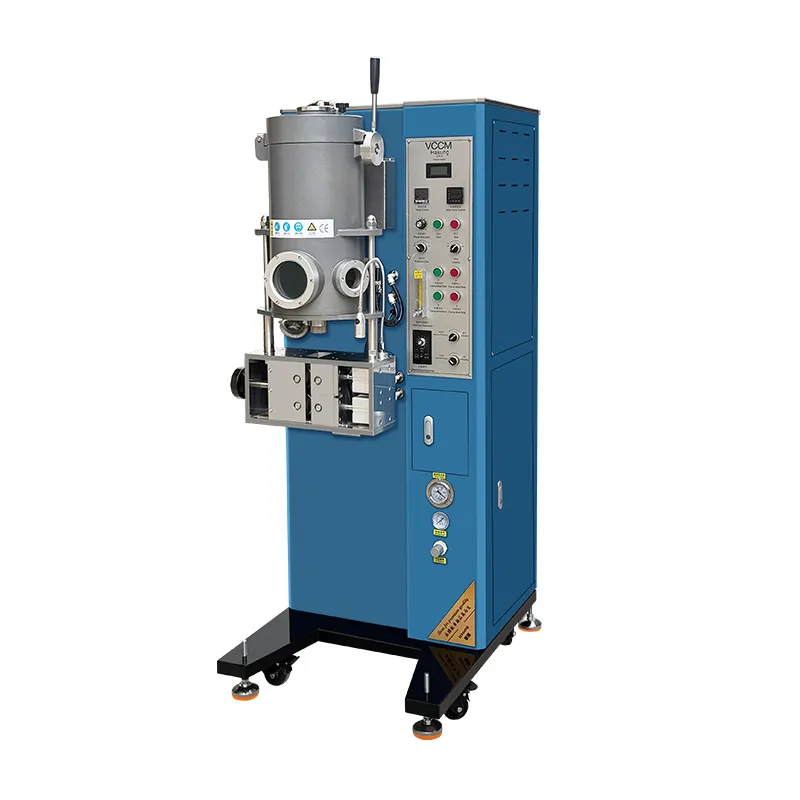

Machine pictures










With first class level quality self-manufactured machines, enjoy high reputation.
Our machines enjoy two years warranty.
Our factory has passed the ISO 9001 international quality certification
We provide a one-stop service for precious metals casting solutions.
