Best Value Jewellery Casting Machine for Metalworking
Product details of the jewellery casting machine
Product Overview
Hasung jewellery casting machine is made up of superior raw material using the latest technology. The products have reached the advanced quality level in the industry. The product has won wide recognition from customers and a wide prospect of application.
Product Introduction
jewellery casting machine is more competitive than other products in the same category, as shown in the following aspects.

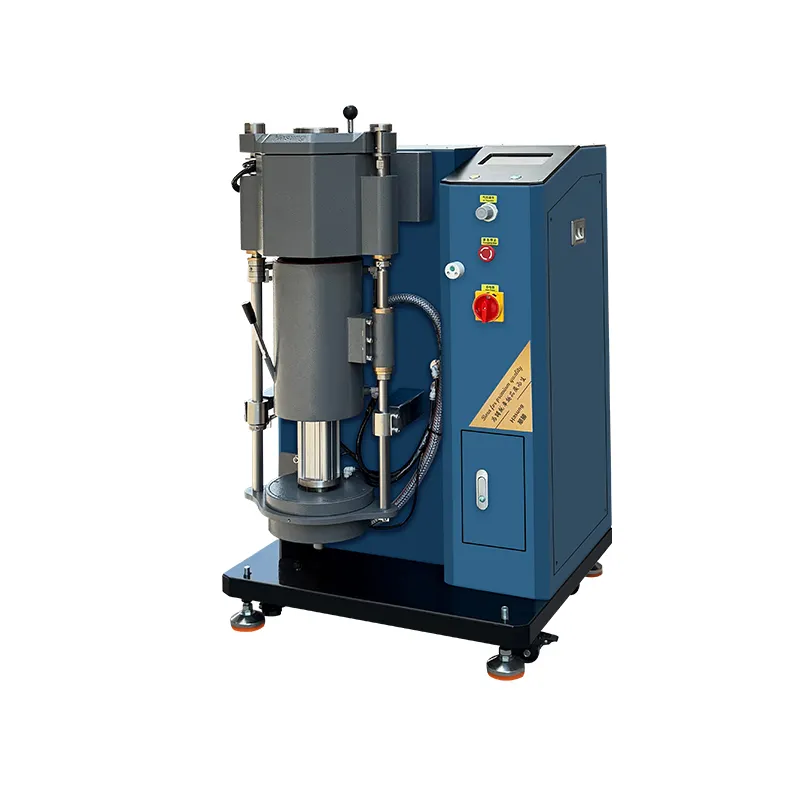

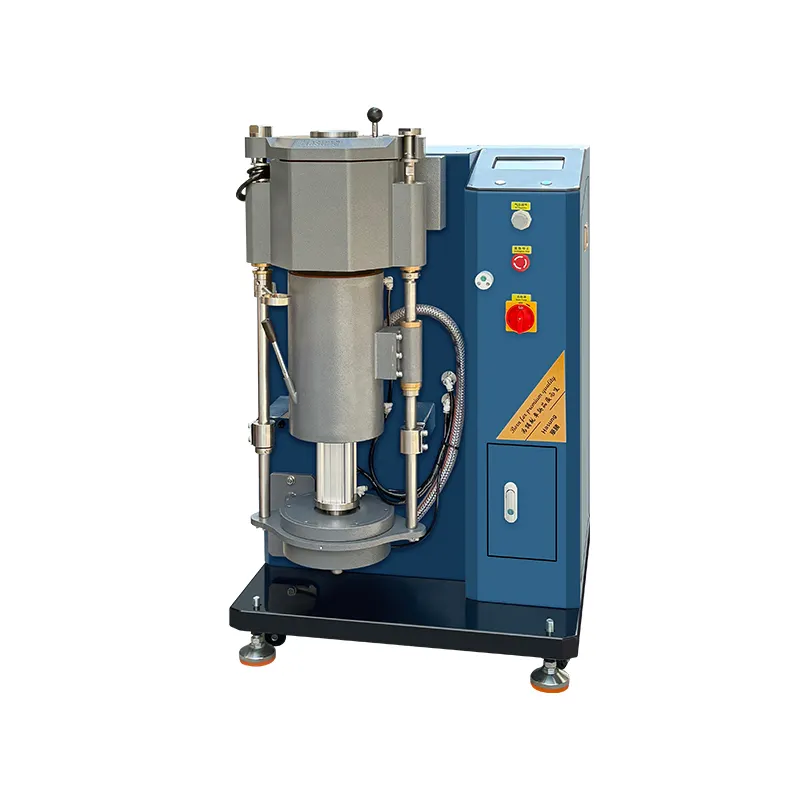

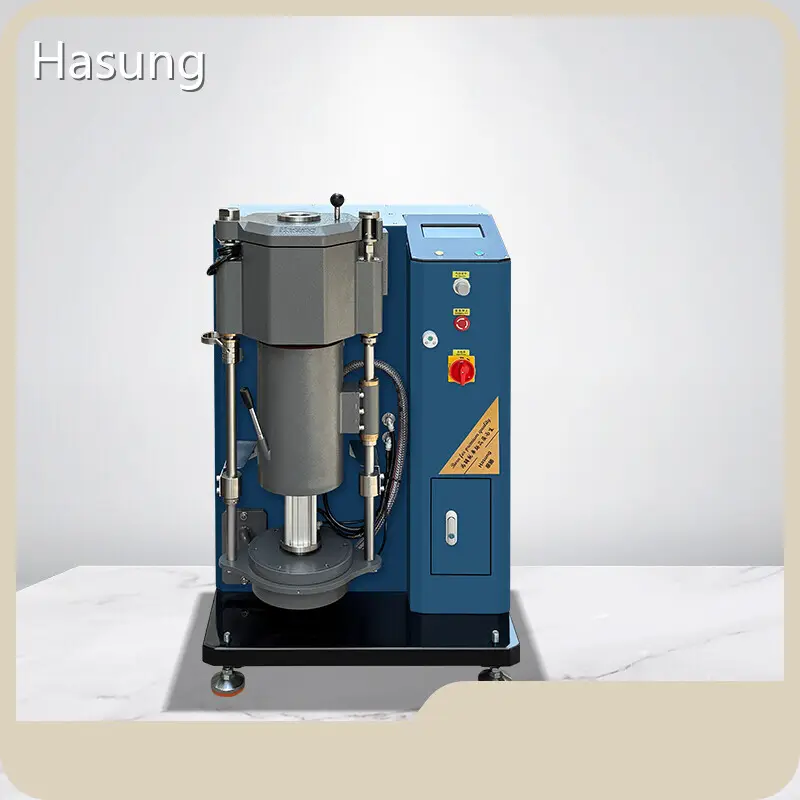

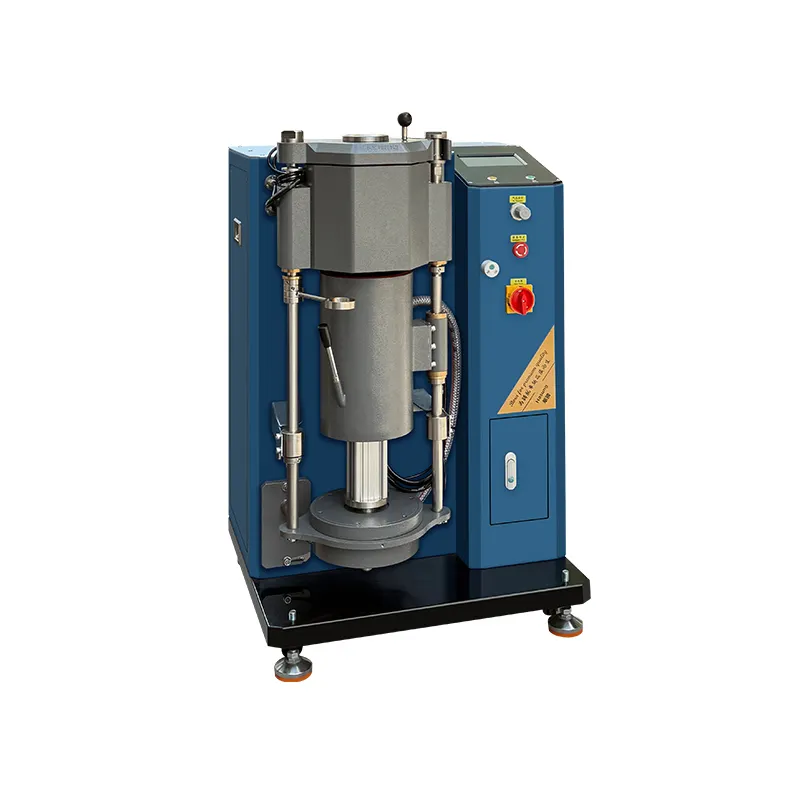

Your next machine for casting jewellery.
Max. withstand 4 bars pressure which gurantees perfect casting. Vacuum sealing with SBS system, without using gaskets.
Technical data
| Model No. | HS-TVC1 | HS-TVC2 | ||
| Voltage | 220V, 50/60Hz 1 Ph | 380V, 50/60Hz 3 Ph | ||
| Power | 8KW | 10KW | ||
| Max. temp. | 1500°C | |||
| Melting speed | 1-2 min | 2-3 min | ||
| Casting pressure | 0.1Mpa - 0.3Mpa | |||
| Capacity (Gold) | 1kg | 2kg | ||
| Max. cylinder size | 4"x10" | 5"x10" | ||
| Application metals | Gold, K gold, Silver, Copper, alloy | |||
| Vacuum pressure setting | Available | |||
| Argon pressure setting | Available | |||
| Temperature setting | Available | |||
| Pouring time setting | Available | |||
| Pressure time setting | Available | |||
| Pressure hold time setting | Available | |||
| Vacuum time setting | Available | |||
| Vibration time setting | Available | |||
| Vibration hold time setting | Available | |||
| Program for flask with flange | Available | |||
| Program for flask without flange | Available | |||
| Overheat protection | Yes | |||
| Magnetic stirring function | Yes | |||
| Flask lifting height adjustable | Available | |||
| Different flask diameter | Available, using different flanges | |||
| Operation method | One-key operation to complete the entire casting process, manual mode is optional | |||
| Control system | Taiwan Weinview touch screen + Siemens PLC | |||
| Operation mode | Automatic mode / Manual mode (both) | |||
| Inert gas | Nitrogen/argon (optional) | |||
| Cooling type | Running water / Water chiller (Sold separately) | |||
| Vacuum pump | High performance vacuum pump (optional) | |||
| Dimensions | 880x680x1230mm | |||
| Weight | approx. 250kg | approx. 250kg | ||
| Packing size | casting machine: 88x80x166cm, vacuum pump: 61x41x43cm | |||
| Packing weight | approx. 290kg. (vacuum pump included) | approx. 300kg. (vacuum pump included) | ||
2 Years Warranty
Automatic Technology Advantages
The porosity is reduced, and the density is higher and constant, reducing post-processing work and reducing loss.
2. Better material fluidity and mold filling, lower enthusiasm risk:
Vibration improves material flow, and the material structure is more compact. Improve shape filling and reduce the risk of hot cracks
3. The grain size is reduced to 50%:
4. Better and more stable material properties:
The tensile strength and elasticity are increased by 25%, and the subsequent processing performance is improved.
