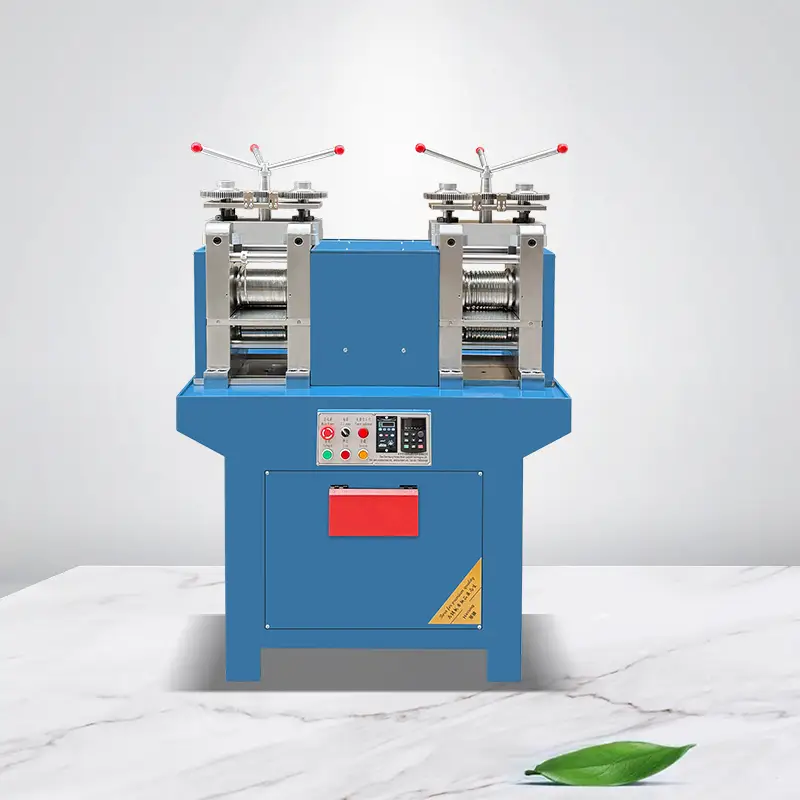

Double Head Wire Rolling Machine for Gold, Silver & Copper
Model: HS-D5HP
Hasung double head wire rolling machine HS-D5HP is designed for efficient processing of gold, silver, and copper wire. With two rolling heads operating synchronously, it can process two wire sets at the same time, helping manufacturers increase production efficiency compared with single-head rolling equipment. The machine is suitable for wire reduction and sizing applications in jewelry manufacturing, precious metal processing, and copper wire production. It features a 4 kW drive system, Cr12MoV rollers with 60–61 HRC hardness, and gearbox transmission. With a specified wire pressing range of 9.5–1 mm, the HS-D5HP jewelry wire rolling machine provides a practical solution for manufacturers requiring consistent wire processing and higher production capacity.
Hasung Double Head Wire Rolling Machine: An Efficient Solution for Metal Wire Processing
Hasung's dual wire rolling mill machine is designed with "dual head synchronous operation" as its core, achieving a leapfrog increase in production capacity - a single device can simultaneously complete the pressing and processing of dual sets of wire, with actual production capacity equivalent to two traditional single head devices, which can significantly reduce processing time, especially suitable for batch wire production scenarios, helping processing enterprises efficiently respond to order demands.
Product Data Sheet
| Product Parameters | |
| Model | HS-D5HP |
| Voltage | 380V/50, 60Hz/3-phase |
| Power | 4KW |
| Roller shaft size | Φ105*160mm |
| Roller material | Cr12MoV |
| Hardness | 60-61° |
| Transmission mode | gearbox transmission |
| Wire pressing size | 10mm to 0.1mm |
| Equipment size | 1120*600*1550mm |
| Weight approximately | about700kg |
Key Components
1.Cr12MoV Rolling Rollers: The rollers are made from Cr12MoV tool steel with a stated hardness of 60–61 HRC, providing the mechanical strength required for repeated rolling operations.
2.Gearbox Transmission: The gearbox transmission system transfers power to the rolling mechanism and supports stable operation during continuous processing.
3.Dual Rolling Heads: The two-head configuration allows simultaneous wire processing and is the main difference from a conventional single-head rolling mill.
4.Safety Protection: The machine incorporates protective measures around the operating system to help reduce operational risks during production.
How the Double Head Wire Rolling Machine Works
1.Wire Feeding
Gold, silver, copper, or other suitable metal wire is fed into the rolling section according to the required starting diameter.
2. Dual-Head Rolling
The two rolling heads operate simultaneously, allowing two wire sets to be processed at the same time for higher production efficiency.
3. Progressive Reduction
The wire passes through the rollers, where controlled pressure gradually reduces its diameter and adjusts its shape.
4. Synchronized Operation
The rolling heads maintain coordinated operation to help keep the processing conditions consistent between the two wire paths.
5. Size Adjustment
The rolling process continues until the wire reaches the required size within the machine's specified working range.
6. Finished Wire Output
The processed wire exits the rolling section with a reduced and more consistent diameter, ready for subsequent jewelry or metalworking processes.
What Makes the HS-D5HP Different?
Applications
1. Jewelry Wire Production
This jewelry wire rolling machine is used to reduce and size metal wire for jewelry manufacturing, including wire preparation for rings, pendants, chains, and other components.
2. Gold Wire Processing
As a gold wire rolling machine, the HS-D5HP can reduce gold wire to the required diameter for subsequent forming, drawing, chain making, or other jewelry processes.
3. Silver Wire Manufacturing
This silver wire rolling machine helps jewelry manufacturers reduce and size silver wire for decorative, structural, and further forming applications.
4. Copper Wire Processing
Our copper wire rolling machine can reduce and size copper wire where controlled dimensions are required for further forming or metalworking processes.
